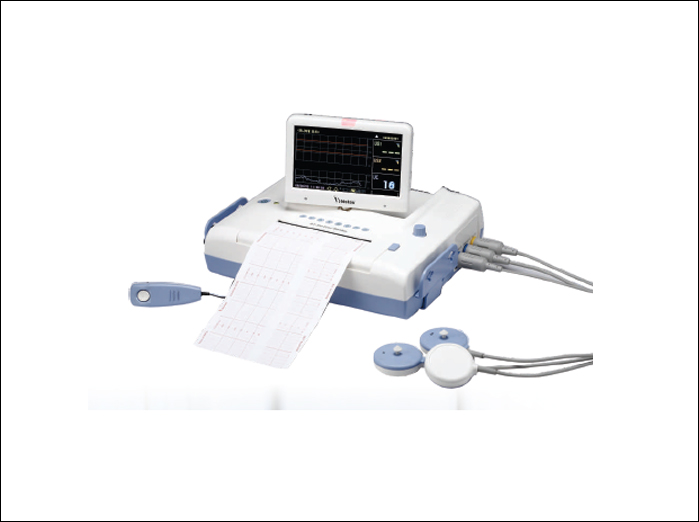

FETAL MONITOR

BT-350 (CTG Machine)

Features

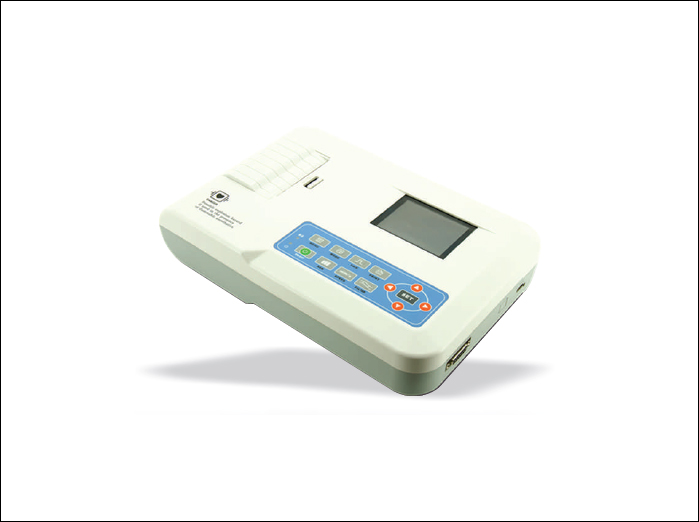

ECG MACHINE

ECG-300G (3 CHANNEL)

Features

Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.
With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.

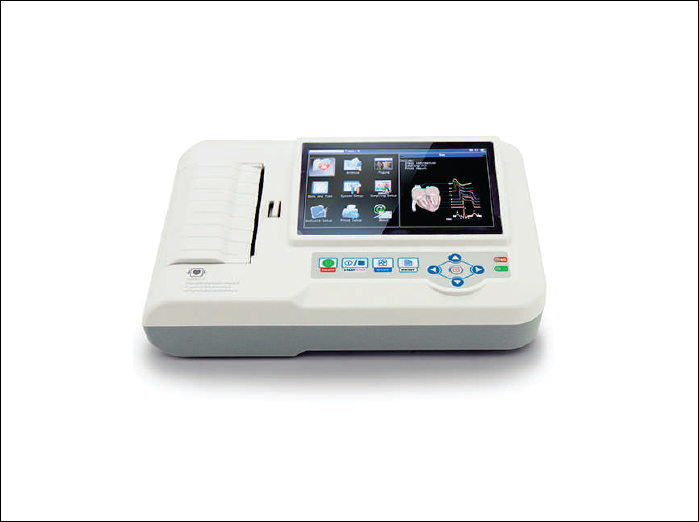

ECG MACHINE

ECG-600G (6 CHANNEL)

Features

Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments.
Recording frequency: up to 150Hz.
Real-time and continuously record the clear and accurate ECG waveform and annotation character (including lead mark, sensitivity, paper speed and filter state, etc.).
Full-digital filter design, anti-baseline drift, AC and EMG interference.
Adjust the baseline automatically, optimize the print setting and optional rhythm leads.
In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, which reduces the doctor’s burden and improves work efficiency.

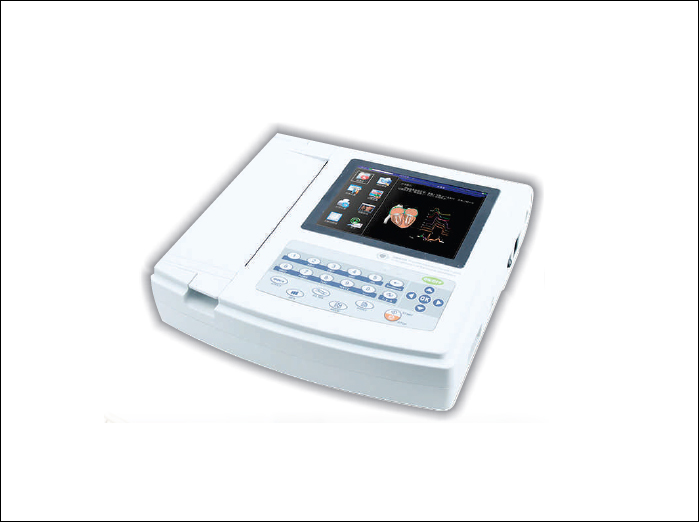

ECG MACHINE

ECG-1200G (12 CHANNEL)

Features

Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
Multiply printing modes and formats, including auto 12x1, auto 6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.

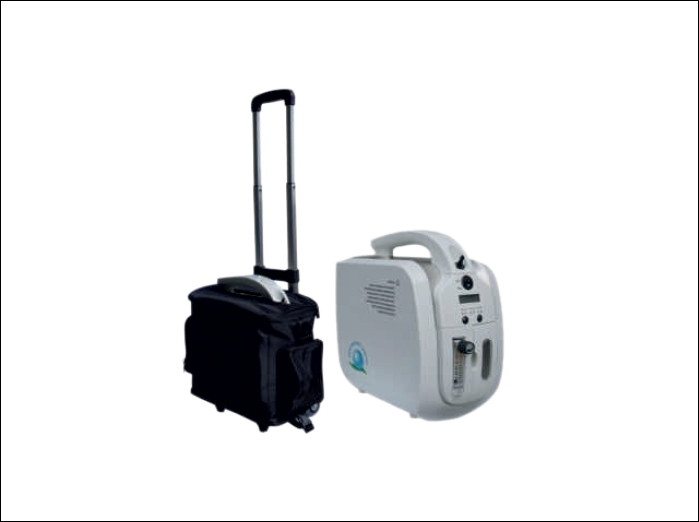

OXYGEN CONCENTRATOR

Portable O2 Concentrator (WITH BATTERY BACKUP)

TECHNICAL SPECIFICATION

Oxygen Flow(L/min)	1-5
	1-5
	93% 3%(1LPM)
	75%+3%(1LPM)
Oxygen Purity (%)	55%+3%(1LPM)
	45%+3%(1LPM)
	38%+3%(1LPM)
Oxygen Pressure (Mpa)	0.03-0.07
Noise (cB)	< 45
Dimensions(mm)	350X190X320
N.W. (kg)	6
Rated Power(W)	< 75
Power Supply(v)	AC220V/110V
Options	DC12V:rechargeable Lithium Battery(one hour)Trolly bag

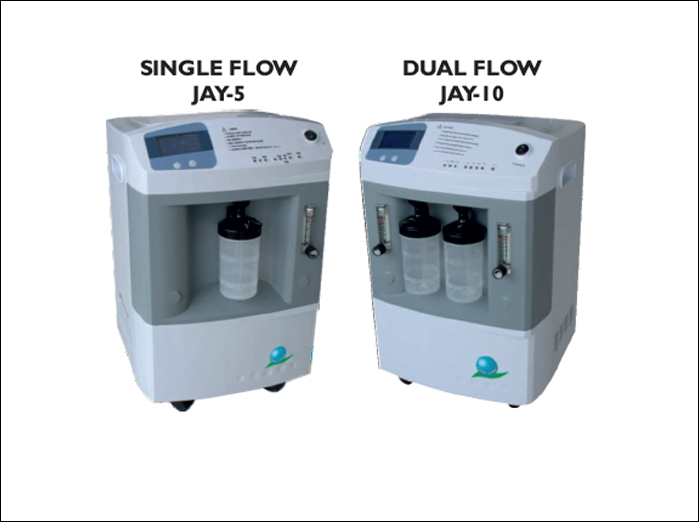

TECHNICAL SPECIFICATION

Flow Rate	0-5L/min.
Flow Rate	0-5L/min.
Purity	93+3%
Outlet Pressure (Mpa)	0.04-0.07
Sound Level	<50db
Power	AC230V, 50Hz (AC220V/110V+10%, 50/60+1Hz)
Power Consumption	<480W
LCD Display	Switch times, Operating Pressure, Present Working Time, Accumulating Time, Presetting Time from 10 to 40min.
Alarm	Power failure alarm, High & Low Pressure Alarm
Net Weight	25 kgs.
Size (mm)	365x375x600

We are one of the trustworthy firms of the industry engaged in offering a wide range of Medical Equipments to our valued customers.
